K0 - Maxmoduler

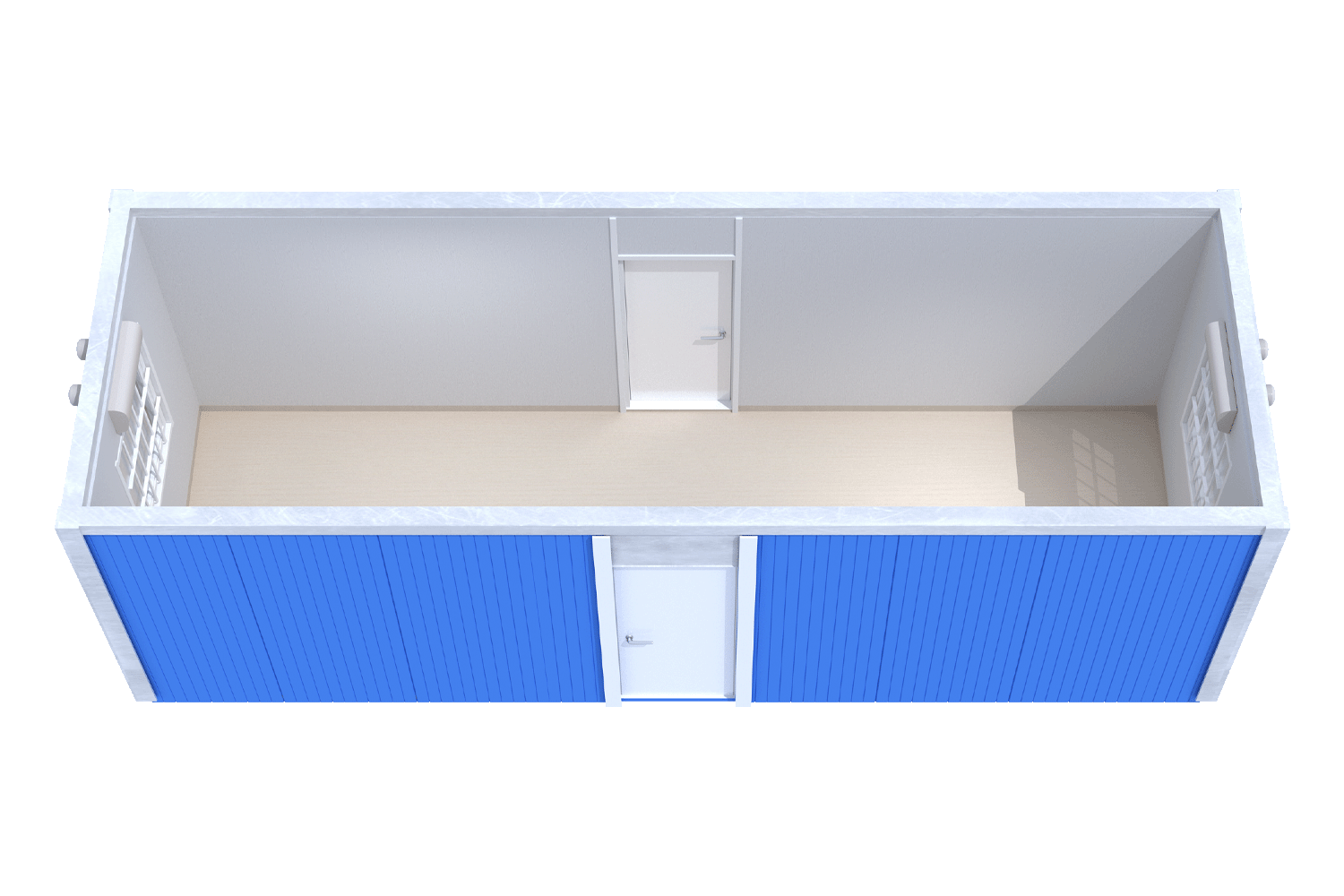

Basic office cabin with open floor plan

K0 is our basic model. Based on K0, we can design a cabin tailored to your needs. Ideal when you want a simple and spacious office cabin.

Module size, external dimensions

L: 840 cm
B: 290 cm
H: 295 cm
24.4 square metres

Type of module

Item number: K0Category: Office cabinsKeywords: 2 persons, 4 persons, 6 persons, Office

Module size
I am a so-called subtitle.
Veritatis, maxime nisi omnis pariatur fugit necessitatibus aut! Animi cumque tempora, libero nihil nostrum architecto dolore voluptas iusto pariatur sit rerum cupiditate harum aut voluptatibus ducimus provident eaque doloremque exercitationem iure iste adipisci aliquid officia.
Type of module
I am a so-called subtitle.
Veritatis, maxime nisi omnis pariatur fugit necessitatibus aut! Animi cumque tempora, libero nihil nostrum architecto dolore voluptas iusto pariatur sit rerum cupiditate harum aut voluptatibus ducimus provident eaque doloremque exercitationem iure iste adipisci aliquid officia.
Product sheets & documentation
I am a so-called subtitle.
Veritatis, maxime nisi omnis pariatur fugit necessitatibus aut! Animi cumque tempora, libero nihil nostrum architecto dolore voluptas iusto pariatur sit rerum cupiditate harum aut voluptatibus ducimus provident eaque doloremque exercitationem iure iste adipisci aliquid officia.

Subject to typographical errors and product updates. We reserve the right to make changes and images may not show the exact design.

Enquiries & contact

Fill in the form and we will contact you, or contact our sales representative Fredrik Åström directly.

Telephone

+46 (0)70-509 11 89

Email

fredrik@maxmoduler.se

Technical description for: K0

- Flooring

  Floor frame.

  Plastic mat with fold-up edge.

  Chipboard flooring.

  Joists 45×145 mm.

  Viasol-impregnated OSB.

  Steel frame with fork pockets.
Documents
- Care instructions Tarkett iQ
To the document bank
- Wall and facade

  Exterior spruce panelling, double bevel, tongue and groove.

  Battens with air gap.

  Wind protection membrane.

  Studs 45x95mm.

  Birch plywood, white.

  Galvanized sheet metal parts

  Gypsum board (Applies to Housing modules only).

  Brannit, fire-rated board (Applies to Housing modules only).
Documents
- Technical description Brannit
- Technical description Brannit, report
To the document bank
- Roof

  Roof joists.

  Roofing felt, single layer covering.

  12 mm wooden board.

  Ventilated air gap between joists.

  Joists 45×120 or 45x170mm.

  Chipboard, white-coated.

  Steel wire in construction (Applies only to Housing modules).

  Brannit, fire-rated board (Applies to Housing modules only).
Documents
- Technical description Brannit
- Technical description Brannit, report
To the document bank
- Windows

  Wooden window 12×12, aluminium-clad wooden window, pivot window, triple-glazed insulated cassette.

  Mouldings.

  White-painted pine with aluminium exterior.
Documents
- Technical specifications for aluminium/wood pivot windows. Svenska Fönster.
To the document bank
- Door

  1 door plug.

  Lock housing, handle and cylinder cover plates.

  Aluminium frame with steel plate and extruded polyurethane foam 9×21.
Documents
- Product data sheet for exterior doors, Vindelåns Snickeri
To the document bank
- Electricity

  Electrical connection, 32 A CEE.

  Electrical distribution board, IP 30 with earth fault circuit breaker.

  Automatic fuse, type C.

  Radiators under windows.

  Presence-sensor controlled lighting.

  2 double sockets at each window.
Documents
Indoor electrical distribution board
Outdoor electrical distribution board
To the document bank
- Ventilation

  Supply and exhaust air valves in gables.

  Ventilation via FTX unit (applies to Housing modules only)
Documents
- Daikin R Series Brochure
- Product sheet Mitsubishi Mini Ventilation VL-50/VL-100
To the document bank
- Foundation
  The foundation should be constructed based on the individual conditions of the establishment.

  Download our floor plan for a standard solution here. You can also find it in our document bank.
Documents
- Standard drawing for foundation
To the document bank
