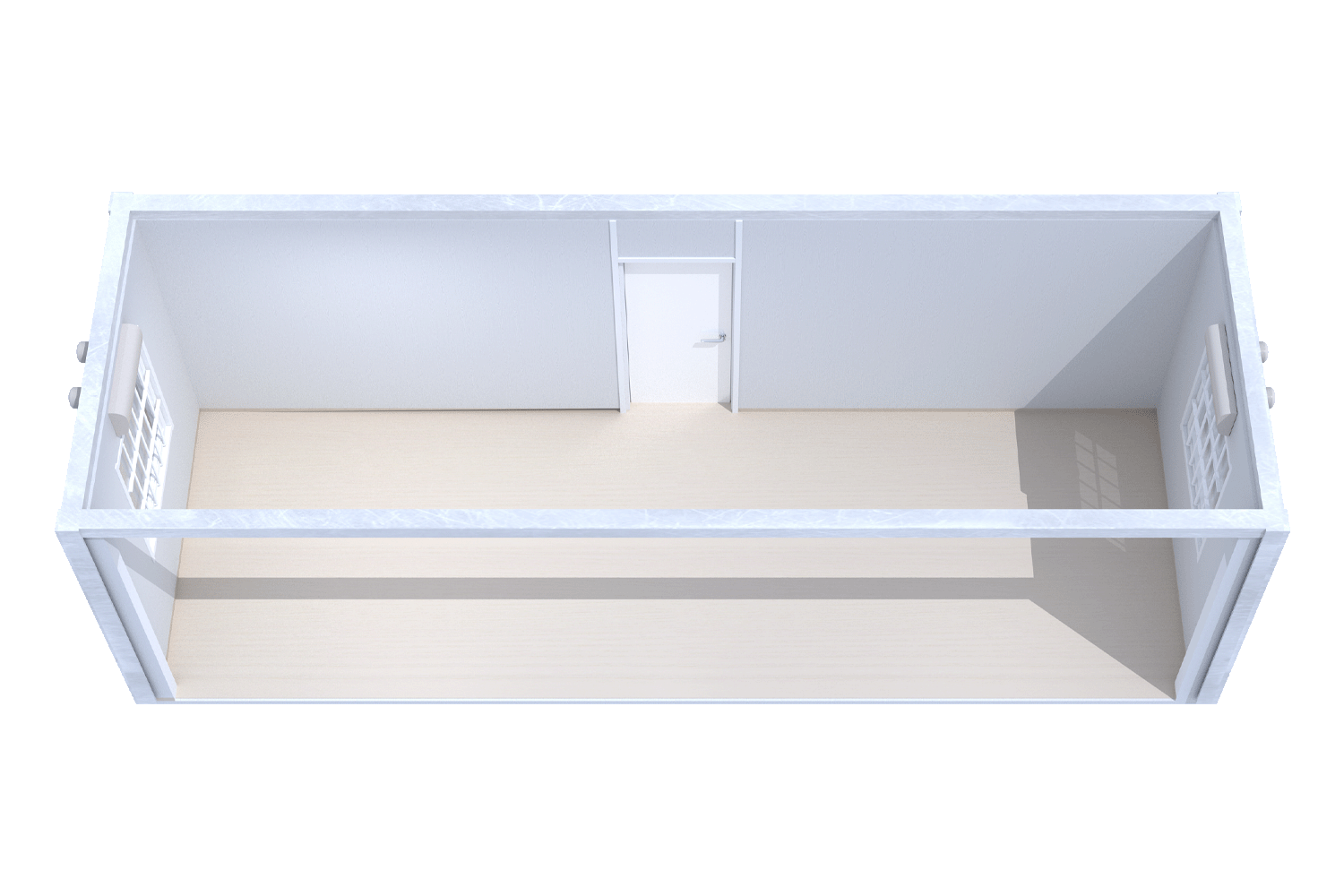

Open office cabin, gable section with door on the right long side
K11H is the right-hand long side, which together with K10 creates larger spaces. K11H has a door on the long side and two windows on each gable for plenty of light.
Module size, external dimensions
L: 840 cm
B: 290 cm
H: 295 cm
24.4 square metres
Type of module
This booth is equipped with an office.
Module size
I am a so-called subtitle.Veritatis, maxime nisi omnis pariatur fugit necessitatibus aut! Animi cumque tempora, libero nihil nostrum architecto dolore voluptas iusto pariatur sit rerum cupiditate harum aut voluptatibus ducimus provident eaque doloremque exercitationem iure iste adipisci aliquid officia.
Type of module
I am a so-called subtitle.Veritatis, maxime nisi omnis pariatur fugit necessitatibus aut! Animi cumque tempora, libero nihil nostrum architecto dolore voluptas iusto pariatur sit rerum cupiditate harum aut voluptatibus ducimus provident eaque doloremque exercitationem iure iste adipisci aliquid officia.
Product sheets & documentation
I am a so-called subtitle.Veritatis, maxime nisi omnis pariatur fugit necessitatibus aut! Animi cumque tempora, libero nihil nostrum architecto dolore voluptas iusto pariatur sit rerum cupiditate harum aut voluptatibus ducimus provident eaque doloremque exercitationem iure iste adipisci aliquid officia.
Subject to typographical errors and product updates. We reserve the right to make changes and images may not show the exact design.
Enquiries & contact
Fill in the form and we will contact you, or contact our sales representative Fredrik Åström directly.
Telephone
+46 (0)70-509 11 89
fredrik@maxmoduler.se
Technical description for: K11H
Flooring
- Floor frame.
- Plastic mat with fold-up edge.
- Chipboard flooring.
- Joists 45×145 mm.
- Viasol-impregnated OSB.
- Steel frame with fork pockets.
Documents
Wall and facade
- Exterior spruce panelling, double bevel, tongue and groove.
- Battens with air gap.
- Wind protection membrane.
- Studs 45x95mm.
- Birch plywood, white.
- Galvanized sheet metal parts
- Gypsum board (Applies to Housing modules only).
- Brannit, fire-rated board (Applies to Housing modules only).
Roof
- Roof joists.
- Roofing felt, single layer covering.
- 12 mm wooden board.
- Ventilated air gap between joists.
- Joists 45×120 or 45x170mm.
- Chipboard, white-coated.
- Steel wire in construction (Applies only to Housing modules).
- Brannit, fire-rated board (Applies to Housing modules only).
Windows
- Wooden window 12×12, aluminium-clad wooden window, pivot window, triple-glazed insulated cassette.
- Mouldings.
- White-painted pine with aluminium exterior.
Door
- 1 door plug.
- Lock housing, handle and cylinder cover plates.
- Aluminium frame with steel plate and extruded polyurethane foam 9×21.
Electricity
- Electrical connection, 32 A CEE.
- Electrical distribution board, IP 30 with earth fault circuit breaker.
- Automatic fuse, type C.
- Radiators under windows.
- Presence-sensor controlled lighting.
- 2 double sockets at each window.
Documents
Indoor electrical distribution board
- Product data sheet GARO Contactor GK 2-pole
- Product data sheet Hager CDS425R
- Product data sheet Hager GD213S
- Product data sheet Hager GP213P
- Product data sheet Hager GZ35A
- Product data sheet Hager HAS340
- Product data sheet Hager KDN363A
- Product data sheet Hager MCS110
- Product data sheet Hager MCS210E
- Product data sheet Hager MCS310
- Product data sheet Schneider 2-pole switch
Outdoor electrical distribution board
Ventilation
- Supply and exhaust air valves in gables.
- Ventilation via FTX unit (applies to Housing modules only)
Documents
- Product data sheet Adax VPS06
- Product data sheet Adax VPS10
- Product data sheet Glamox Heating TLO03
- Product data sheet Glamox Heating TLO07
- Product data sheet Glamox Heating TLO10
- Product data sheet Glamox Heating TPA06
- Product data sheet Glamox Heating TPA12
- Product data sheet Glamox Heating Thermostat 3001 DT
- Product data sheet Glamox Heating Slave Module 3001
Heating
Foundation
The foundation should be constructed based on the individual conditions of the establishment.
Download our floor plan for a standard solution here. You can also find it in our document bank.
